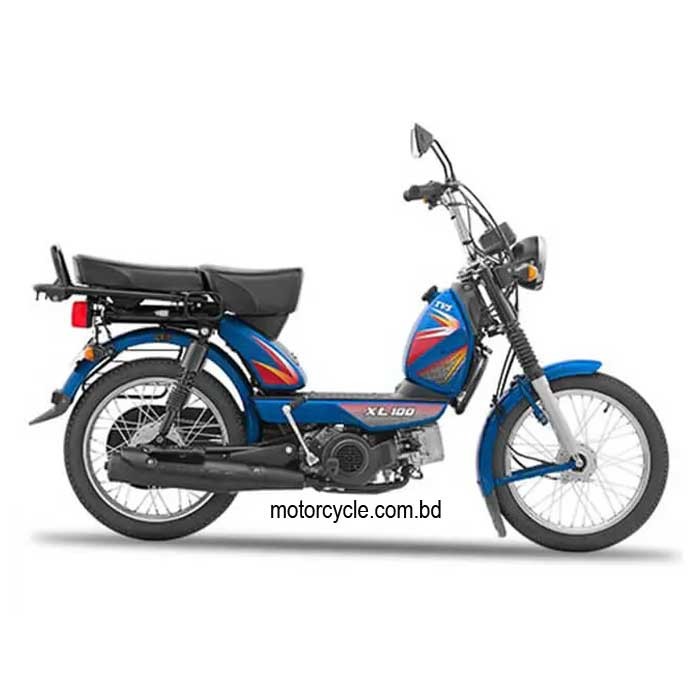

TVS XL 100 Full Specifications
Engine & transmission
| Type | Single cylinder, 4 stroke, air cooled SOHC SI |
|---|---|
| Engine cc | 99.7 cc |
| Maxpower | 4.1bhp/4.2 PS @6000 rpm |
| Max torque | 6.3 Nm @3500 rpm |
| Engine bore | 51.00 mm |
| Stroke | 48.80 mm |
| Fuel System | Carburator |
| Compression Ratio | 9.7:1 |
| Cooling System | Air Cooled |
| Clutch | Wet-centrifugal shoe |
| Starting Method | Kick |
Body
| Length | 1858 mm |
|---|---|
| Width | 670 mm |
| Height | 1060 mm |
| Wheelbase | 1215 mm |
| Ground Clearance | 144 mm |
| Fuel Tank | 4.00 liter |
| Fuel Tank Reserve | 4.00 |
| Weight | 79 kg |
| Maxload | 130 |
Brakes, wheels & suspension
| Suspension Front | Telescopic spring type |
|---|---|
| Suspension Rear | Dual shockers having variable rated spring with swing arm |
| Wheel Front Type | Spoke Wheel |
| Wheel Rear Type | Spoke Wheel |
| Tire Type | 2.50 × 16-6 Ply rating |
| Tire Rear | 2.50 × 16-6 Ply rating |
| Brake Front | Drum |
| Brake Front Diameter | 80 mm |
| Brake Rear | Drum |
| Brake Rear Diameter | 110 mm |
Performance
| Mileage | 50 Kmpl |
|---|---|
| Topspeed | 62 Kmph |
Electricals
| Battery Type | MF |
|---|---|
| Battery Capacity | 12V5Ah |
| Battery Voltage | 12V |
| Head Lamp | 12V, 35/35W×1 |
| Turn Lamp | 12V, 10W ×4 |
| Ignition | CDI |
| Pass Switch | Yes |
| Tail Light | 12V, 5/21W×1 |
Features
| Speedometer | Analogue |
|---|---|
| Fuel Indicator | Yes |
| Seat Type | Single |
| Handle Type | Standard |
| Frame | Welded tubular step thru construction |
Others
| No. Cylinders | 1 |
|---|---|
| Drive Type | Chain |
| Carry Hook | No |
| Colors | Wheat, Black, Red, Green, Blue |
